C35 BAKING TRAY
SANITATION CART
C35 BUCKET
SANITATION CART
C35 TOTE
SANITATION CART
C35 GENERAL PARTS
SANITATION CART
C35 MODULAR SANITATION CART FRAME
(W/ TRAY & BUCKET PART MODULES)
C35 BAKING TRAY
SANITATION CART
C35 BUCKET
SANITATION CART
C35 TOTE
SANITATION CART
C35 GENERAL PARTS
SANITATION CART
C35 MODULAR SANITATION CART FRAME
(W/ TRAY & BUCKET PART MODULES)
Sanitation Carts for the CyClean 35 Parts Washer hold your process parts while inside the washer for easy and automated Clean-Out-of-Place (COP) parts washing.
Available in Standard Sanitation Cart configurations for washing a high volume of the same parts, or customize with our Modular Sanitation Cart and Parts Modules to build a solution for your specific set of parts to wash.
Product Resources
Literature
Videos
CyClean™ 35 Operation
See how the CyClean 35 Parts Washer and Sanitation Carts work.
Sanitation Carts
C35 Totes Sanitation Cart
Part #344585
TOTE DIMENSIONS
-
Width = 18″ (MAX)
-
Length = 14″ (MIN) – 25″ (MAX)
-
Height = 5″ (MIN) – 8″ (MAX)
TOTE LID DIMENSIONS
-
Width = 18″ (MAX)
-
Length = 14″ (MIN) – 25″ (MAX)
-
Height = 2″ (MAX)
-
Ships in 2-3 Weeks
-
Suitable for Totes, Bus Tubs, Food Storage Boxes, and More
C35 Baking Trays Sanitation Cart
Part #344578
BAKING TRAY DIMENSIONS
-
Width = 17.25″ (MIN) – 18.5″ (MAX)
-
Length = 25″ (MIN) – 26″ (MAX)
-
Height = 1.25″ (MAX)
-
Ships in 2-3 Weeks
-
Suitable for Baking Trays, Baking Pans, Bun Pans, Sheet Pans, Freeze Dry Trays, and More

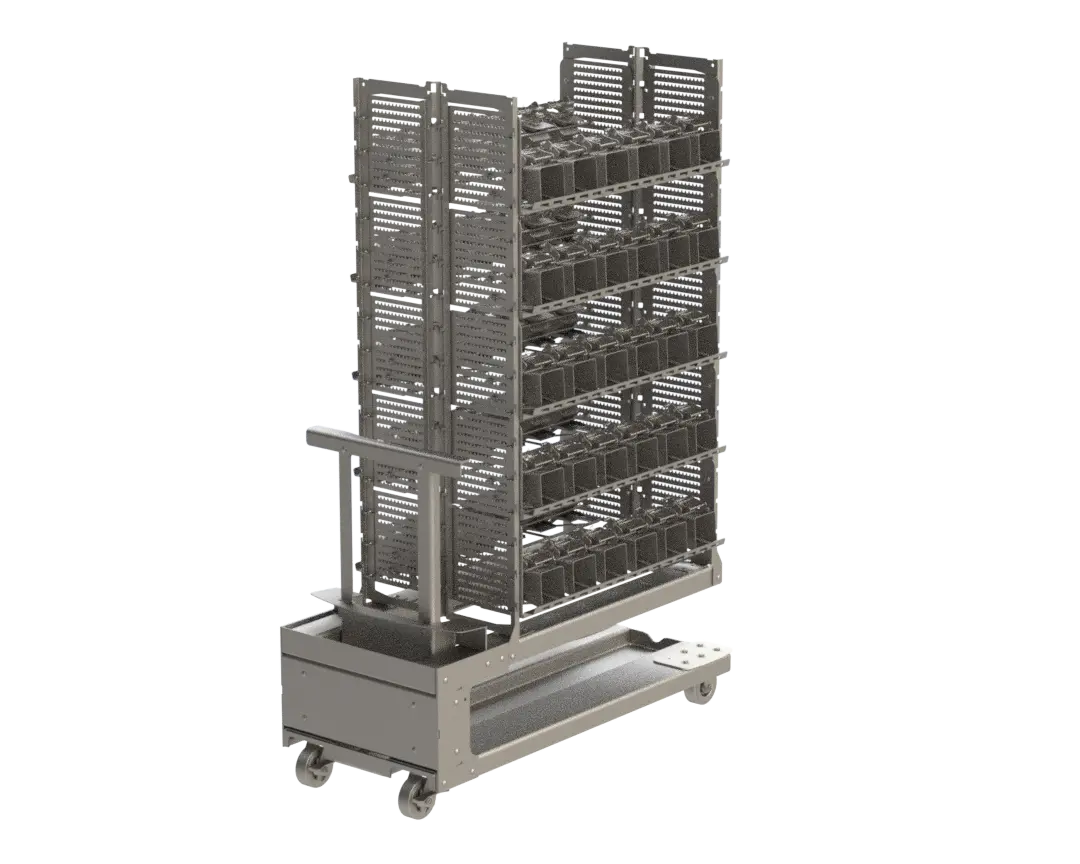

C35 Buckets Sanitation Cart
Part #344584
BUCKET DIMENSIONS
-
Width = 9″ (MIN) – 11.875″ (MAX)
-
Length = 9″ (MIN) – 11.875″ (MAX)
-
Height = 9.25″ (MIN) – 15″ (MAX)
BUCKET LID DIMENSIONS
-
Width = 9″ (MIN) – 11.875″ (MAX)
-
Length = 9″ (MIN) – 11.875″ (MAX)
-
Height = 1.375″ (MAX)
-
Ships in 2-3 Weeks
-
Suitable for Buckets, Jugs, Pails, Food Storage Containers, and More
C35 General Parts Sanitation Cart
Part #344686
GENERAL DIMENSIONS FOR OPEN VOLUME ABOVE EACH SHELF FOR PARTS
-
Width = 12″
-
Length = 36″
-
Height = 16″
-
Shelves are adjustable and can be easily rearranged to accommodate parts ranging from 4″ to 32″ in height
-
Ships in 2-3 Weeks
-
Contains (8) Shelves for washing general and miscellaneous parts
-
Suitable for clamps, fittings, or other miscellaneous process parts
C35-MP100
Modular Sanitation Cart Frame
Part #344301
-
Ships in 2-3 Weeks
-
Add Part Modules to build a custom Sanitation Cart for your unique application
-
16 Slots for Part Modules on each side (32 total slots)
C35 Parts Module – Totes
Part #343197
TOTE DIMENSIONS
-
Width = 18″ (MAX)
-
Length = 14″ (MIN) – 25″ (MAX)
-
Height = 5″ (MIN) – 8″ (MAX)
TOTE LID DIMENSIONS
-
Width = 18″ (MAX)
-
Length = 14″ (MIN) – 25″ (MAX)
-
Height = 2″ (MAX)
-
(4) MIN – (7) MAX Slot Parts Module (Depends on Tote Height)
-
Ships in 2-3 Weeks
-
Suitable for Totes, Bus Tubs, Food Storage Boxes, and More
C35 Parts Module – Baking Trays
Part #339554
BAKING TRAY DIMENSIONS
-
Width = 17.25″ (MIN) – 18.5″ (MAX)
-
Length = 25″ (MIN) – 26″ (MAX)
-
Height = 1.25″ (MAX)
INSTALLATION NOTES
-
Qty. (4) Parts Modules Required for (1) Tray Assembly
-
Qty. (6) Parts Modules Required for (2) Tray Assemblies (Assemblies Share Top / Bottom Parts Modules)
-
(12) Slot Parts Module
-
(6) Slots Per Side
-
Ships in 2-3 Weeks
-
Suitable for Baking Trays, Baking Pans, Bun Pans, Sheet Pans, Freeze Dry Trays, and More
C35 Parts Module – Buckets
Part #339676
BUCKET DIMENSIONS
-
Width = 9″ (MIN) – 11.875″ (MAX)
-
Length = 9″ (MIN) – 11.875″ (MAX)
-
Height = 9.25″ (MIN) – 15″ (MAX)
BUCKET LID DIMENSIONS
-
Width = 9″ (MIN) – 11.875″ (MAX)
-
Length = 9″ (MIN) – 11.875″ (MAX)
-
Height = 1.375″ (MAX)
-
(4) Slot Parts Module
-
Ships in 2-3 Weeks
-
Suitable for Buckets, Jugs, Pails, Food Storage Containers, and More
C35 Parts Module – General Parts
Part #342667
GENERAL DIMENSIONS FOR VOLUME ABOVE EACH SHELF FOR PARTS
-
Width = 12″
-
Length = 36″
-
Height = 32″ (MAX)
INSTALLATION NOTES
-
Parts Module takes up (1) Slot – leave open additional space above as needed (4″ up to 32″, in 4″ increments)
-
(1) MIN – (8) MAX Slot Part Module
-
Ships in 2-3 Weeks
-
Suitable for clamps, fittings, or other miscellaneous process parts
Modular Sanitation Carts are a build your own solution when you want to clean a variety of parts at the same time. Starting with the standard cart frame, you choose the configuration from our collection of Parts Module options. This customizable design allows you to change your cart at any time to meet your washing needs.
Each Parts Module is designed to occupy a specific space on the cart frame. Depending on the item you are looking to wash, (1) – lower only or (2) – an upper and lower module may be required.
For example, to create a Modular Sanitation Cart for a combination of buckets and trays you will need:
Modular Sanitation Cart Example:
Technical Datasheet
CyClean™ 35
CyClean™ 35
Parts Washer
Standard, Quick to Deliver Parts Washer.
Automated cycle saves labor, time, utilities and cleans consistently.
Add-on accessories to build to your specific requirements.
