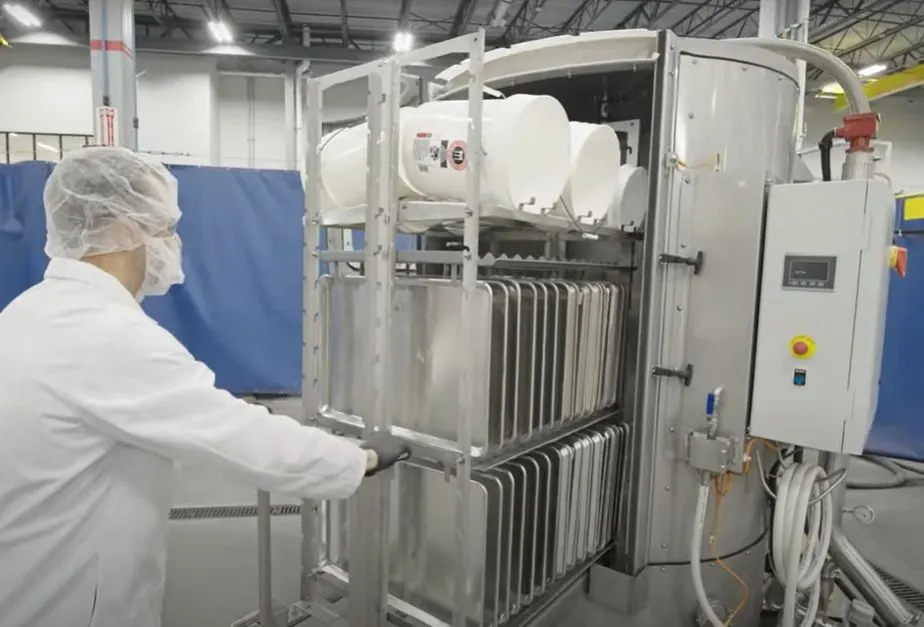

Designed with you in mind, the CyClean 35 is an all-electric automated washer for parts requiring cleaning-out-of-place (COP). Ideal for customers looking to wash common process parts such as buckets, totes, trays, and utensils, this innovative washing solution offers consistent cleaning without the complexity of higher cost, customized systems.

The simplified control interface and pre-programmed wash cycles take the complexity out of cleaning, and the unique sanitation cart design allows this washing system to grow along with your production needs – with the ability to be a bucket washer, a tote washer, a tray washer, and more.

Designed with you in mind, the CyClean 35 is an all-electric automated washer for parts requiring cleaning-out-of-place (COP). Ideal for customers looking to wash common process parts such as buckets, totes, trays, and utensils, this innovative washing solution offers consistent cleaning without the complexity of higher cost, customized systems.

The simplified control interface and pre-programmed wash cycles take the complexity out of cleaning, and the unique sanitation cart design allows this washing system to grow along with your production needs – with the ability to be a bucket washer, a tote washer, a tray washer, and more.

Product Resources

Literature

CyClean™ 35
Technical Datasheet

CyClean™ 35
IOM

CleanWorx™
Brochure

Videos

CyClean™ 35 Operation

See how the CyClean 35 Parts Washer and Sanitation Carts work.

CyClean 35 Parts Washer
Typical Packages

BASE

CyClean™ 35

Parts Washer
+ Sanitation Cart

Starting at

$ 57,500

or lease options as low as

$ 1,200 / Month
  • Base Package Pricing Includes:
  • (1) CyClean 35 Parts Washer

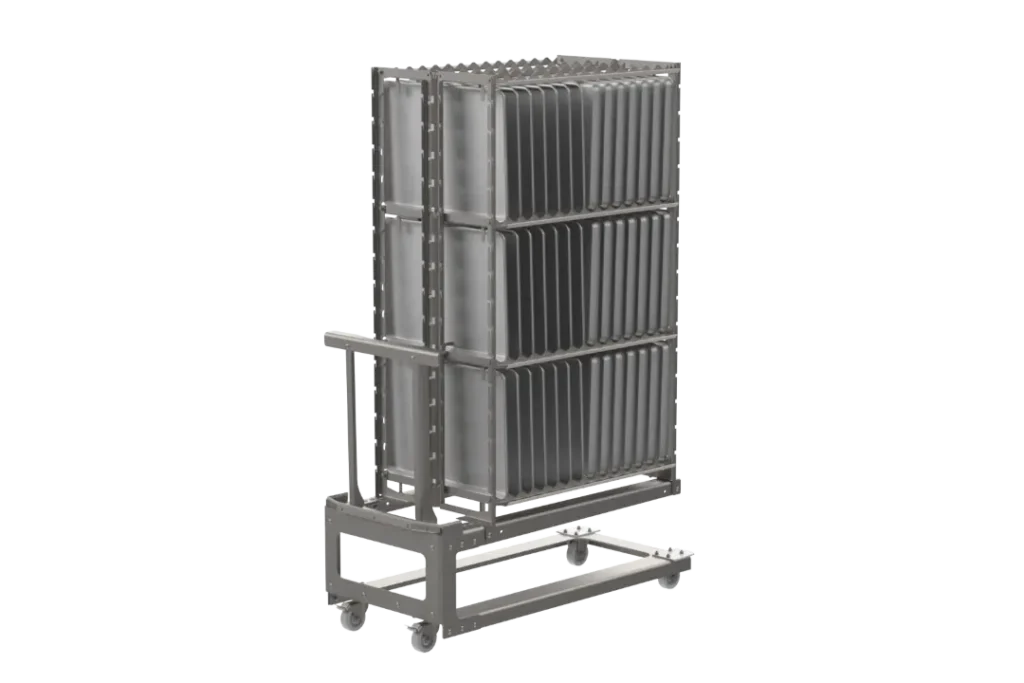

  • (1) C35 Baking Trays Sanitation Cart
ADVANCED

CyClean™ 35

Parts Washer
+ Sanitation Cart
+ Preferred Accessories

Starting at

$ 64,980

or lease options as low as

$ 1,360 / Month
  • Advanced Package Pricing Includes:
  • (1) CyClean 35 Parts Washer
  • (1) C35 Baking Trays Sanitation Cart
  • (1) Chemical / Sanitizer Pump Assembly
    Wall Mount w/ Diaphragm Pump
  • (1) Conductivity Chemical Control
  • (1) Washdown Rinse Kit
  • (1) 1-Year Subscription SaniTrend® Cloud
    Cleaning Reports (CR) Essentials

Accessories

Recommended

Chemical / Sanitizer Pump Assembly
Wall Mount w/ Diaphragm Pump

PART #348697

$ 2,400
features
  • Air Operated Diaphragm Pump (electrically controlled by CyClean 35)
  • Wall Mount Bracket
  • Suction Lance with Foot Valve
  • Bleed Valve (Bypass)
  • 30 ft. Polyethylene Tubing
  • Injection Check Valve & Fittings
notes
  • Automates the chemical injection process
  • Ideal for detergent chemicals
  • For use with large (e.g., 55 gal.) chemical drums
  • Must be placed within 30 ft. of CyClean

Chemical / Sanitizer Pump Assembly
Wall Mount w/ Metering Pump

PART #347028

$ 3,750
features
  • 120V AC Electric Metering Pump (electrically controlled by CyClean 35)
  • Wall Mount Bracket
  • Suction Lance with Foot Valve
  • Bleed Valve (Bypass)
  • 30 ft. Polyethylene Tubing
  • Injection Check Valve & Fittings
notes
  • Automates the chemical injection process
  • Ideal for sanitizer chemicals
  • For use with large (e.g., 55 gal.) chemical drums
  • Must be placed within 30 ft. of CyClean
Recommended

Conductivity Chemical Control

PART #343313

$ 2,800
features
  • Conductivity Sensor (0-200 mS/cm)
  • Tee, Clamps, & Gaskets for Integration into Equipment
  • M12 Electrical Cable
notes
  • Conductivity sensor used for control
    & measurement of concentration of
    wash chemicals
  • Integrates with CyClean 35 controls to ensure proper dosing
  • Conductivity Data is captured by SaniTrend Cloud CR Essentials reporting product (if chosen)

Chemical / Sanitizer Day Tank Skid
w/ Diaphragm Pump

PART #347029

$ 6,500
features
  • Air Operated Diaphragm Pump (electrically controlled by CyClean 35)
  • Standalone skid with SS framework
  • 15 gal. polypropylene chemical tank
  • Low level switch
  • Suction Lance with Foot Valve
  • Bleed Valve (Bypass)
  • 30 ft. Polyethylene Tubing
  • Injection Check Valve & Fittings
notes
  • Automates the chemical injection process
  • Ideal for detergent chemicals
  • Must be placed withing 30 ft. of CyClean

Chemical / Sanitizer Day Tank Skid
w/ Metering Pump

PART #347030

$ 8,750
features
  • 120V AC Electric Metering Pump (electrically controlled by CyClean 35)
  • Standalone skid with SS framework
  • 15 gal. polypropylene chemical tank
  • Low level switch
  • Suction Lance with Foot Valve
  • Bleed Valve (Bypass)
  • 30 ft. Polyethylene Tubing
  • Injection Check Valve & Fittings
notes
  • Automates the chemical injection process
  • Ideal for sanitizer chemicals
  • Must be placed withing 30 ft. of CyClean

Supply Water Steam Mixing Valve

PART #343316

$ 2,500
features
  • Water-Steam Hot Water Mixing Valve
notes
  • Intended for facilities that cannot supply hot water but have steam available
  • Required Water Pressure: 15 – 145 psig
  • Required Steam Pressure: 5 – 145 psig
Recommended

SaniTrend® Cloud
Cleaning Reports (CR) – Essentials

PART #349254

$ 1,950

Annually

features
  • Hardware and 1 Year of Software and Online Access to SaniTrend Cloud Portal
  • Computer is NOT Included
notes
  • Online data software that provides automated, secure data acquisition and reporting of critical cleaning cycle information, along with system operational efficiency insights
  • Users, having a facility user login account, access SaniTrend Cloud via a web browser
  • Discover more information on SaniTrend Cloud CR at our website
Recommended

Washdown Rinse Kit

PART #343315

$ 530
features
  • Mounting Bracket / Station
  • 50 ft. hose
  • Rinse nozzle with shutoff valve
notes
  • Ideal for pre-rinsing off heavy product residue prior to being washed in the CyClean 35

Start-Up & Training
(Budgetary)

PART #FIELD START-UP AND TRAINING

$ 6,200
features
  • Includes Travel Costs, (2) Days of Travel, and (2) Days (16 Hrs Total) of Onsite Support
notes
  • Onsite Technician to help start-up the equipment and train operators.
  • Listed price is budgetary and billed based on actual Time & Material costs.

Preventive Maintenance (PM) Program
(Budgetary; Excludes Material Costs)

PART #FIELD PM PROGRAM

$ 6,200
Included features
  • Includes Travel Costs, (2) Days of Travel, and (2) Days (16 Hrs Total) of Onsite Support
notes
  • Onsite Technician to provide Preventive Maintenance (PM) of the equipment.
  • A PM service is recommended to be done annually, or more frequently, depending on operation of the equipment.
  • Listed price is budgetary and billed based on actual Time & Material costs.
Contact Us Form








Frequently Asked Questions

What are the minimum requirements to install a CyClean?

Space Requirements: 93-1/4″ W x 100″ D x 96″ H. Installed on a level, even floor with an available floor drain.

Electrical Requirements: 60 Amp @ 460VAC, 3 phase, 60Hz

Water Requirements: Supply water between 10-40gpm with a drain capable of 20gpm or greater. The supply water temperature is recommended to be 10-15°F hotter than the desired operating temperature.

Exhaust Requirements: 250 cfm @ 0″ W.C.

Is the CyClean available with custom options?

An option is a feature or component that is added to a product at time of purchase. This may involve removing components such as the heater, using specific brand parts, or accommodating particular manufacturing requests, such as material finishes. Unfortunately, to maintain consistent pricing and lead times, we cannot accommodate any custom options for individually purchased CyClean Part Washers.

If you are an OEM or you are looking to purchase multiple CyClean Part Washers, please contact us to discuss your needs further.

The CyClean product line does offer several accessories that can be added to a product after purchase. If you have any questions about our available accessories or if you don’t see an accessory that meets your application requirements, please reach out to us so we can discuss your application in more detail.

How much water will the CyClean use?

The amount of water used during a wash cycle depends on the number of steps involved. The CyClean is classified as a “fill and dump” parts washer, meaning that at the beginning of each step, a specific amount of fresh water is added to the CyClean. This water is then recirculated during the step before the used water is disposed of down the drain.

The CyClean can be configured to operate with anywhere from 1 to 4 steps, with each step using approximately 20 gallons of water. Most applications typically use 40 gallons, but depending on your CyClean’s configuration, the total water usage can range from 20 to 80 gallons.

My parts have a cannot be washed with water over a certain temperature. Can the CyClean ensure my parts won’t be washed with water over this temperature?

Yes. The CyClean features programmable system limits that can be set by authorized personnel. You can easily adjust the maximum temperature limit to a level that will not damage your parts. If the CyClean detects that the water temperature exceeds this limit, it will stop operating and display an error code indicating that the water temperature has gone beyond the set limits.

How often do the strainers need to be checked?

The frequency at which you inspect and clean your strainers is very much dependent on your unique application. We recommend that you inspect your strainers often until you are able to develop a maintenance schedule that will accommodate needs.

How do I know if the CyClean will be able to clean my unique parts?

Every application is unique, and cleaning requirements can vary significantly, making it challenging to provide a definitive answer.

To help you determine if the CyClean is the right solution for your needs, CleanWorx offers a part cleaning and evaluation service. During this service, your parts will be cleaned in a CyClean Parts Washer, allowing us to assess whether this cleaning solution meets your requirements. You’ll receive a written report, complete with pictures and our professional recommendation based on the results. While your presence during the cleaning test is not mandatory, we encourage you to attend so you can see the results firsthand.

If you are interested in this program, please contact us to learn more or to schedule your part cleaning and evaluation test today!

Sanitation Carts

Sanitation Carts
(for CyClean™ 35)

Hold parts for cleaning in CyClean™ 35 Parts Washer.
Standard Sanitation Carts for high quantity washing.
Modular Sanitation Carts for “Build Your Own” Designs.

Are you interested in this CyClean™ 35, but don’t have CAPEX funding? Sani-Matic’s Leasing Program may be a solution for you.

Benefits Include:

  • Use OPEX Funds for Equipment
  • No Money Down
  • Low Monthly Payments
  • Defer Payment for up to 90 Days
  • 3, 4, or 5 Year Terms
