TACTaFlow™

Powerful, Portable, Compact CIP

TACTaFlow™ CIP systems are cGMP and ASME BPE compliant and pre-engineered, ready to be dropped into your next specification package with available P&ID, 2D, and 3D design layouts.

Make CIP system specification easy with the TACTaFlow from Sani-Matic — with options for mobile, 1 tank, and 2 tank systems with a wide array of options.

  • Quick Tips

    What options are available for the 1 tank and 2 tank models?

    The brochure contains both standard and optional features that are available - optional features include Coriolis flow meter, air blow, sample valve, EP finish, drain cooling or pump, heating system alternatives, and more.

Resources
View brochures, manuals, technical datasheets, or watch videos for this product.

Details
Explore product details such as standard features, available options, and more.

Articles
Read articles written by industry leaders to share their expertise and recommendations.

Applications



PROCESS TANKS • PROCESS LINES • PROCESS EQUIPMENT • MIXERS, BLENDERS • BIOREACTORS • FERMENTERS • SPRAY DRYERS, COATERS • HOSES • IBCs • FILLERS, FILLER PARTS

Markets



Pharmaceutical LIQUID & Biotech • Pharmaceutical OSD • ANIMAL HEALTH

Product Resources

Literature

TACTaFlow™ Brochure

TACTaFlow™

Videos

TACTaFlow™

Stop struggling with custom CIP system specifications for high purity applications - make life easy with the standardized TACTaFlow™, from Sani-Matic.



Product Details

Standard Features

  • Supply tank – 316Lss / BPE SF2 designed for +14.5 psig/-14.7 psig (non-code)
  • Centrifugal supply pump w/ VFD – Fristam FPX
  • Pneumatic diaphragm valves – ITT Pure-Flo
  • Chemical and final rinse conductivity sensors
  • Radar tank level detection
  • Supply and return temperature sensors
  • Conduit – SCH40 PVC Coated Galvanized Steel
  • Frame – 304ss / 32 Ra welds color cleaned
  • Hygienic Piping – 316Lss / BPE SF2
  • Steam & Condensate heating system (S60 / D60) ; Electric heating system (S45)
  • Return flow switch
  • Chemical injection system
  • UL, NEMA 4X Control Panel & Components
  • System Programming

Optional Features

  • Riboflavin Test
  • 10″ PanelView
  • Mass Coriolis Flowmeter
  • Pressure Transmitter
  • Tank Vent Filter(s)
  • ASME Pressure Rated Tank(s)
  • Air Blow
  • Sample Valve
  • Electropolish (BPE SF4)
  • Piping Insulation
  • CIP Supply Routing Valve(s)
  • Drain Cooling or Routing Valves
  • Drain Pump
  • Sanitary Flex Hoses
  • Heating System Alternatives
  • SIP Function (S45 Only)

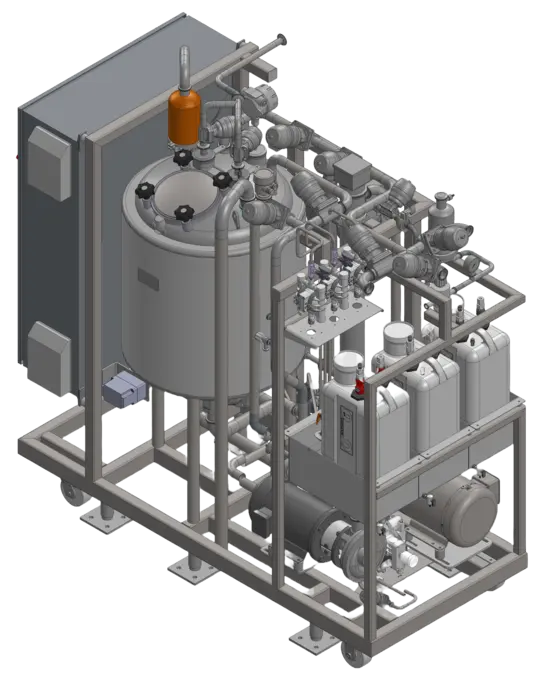

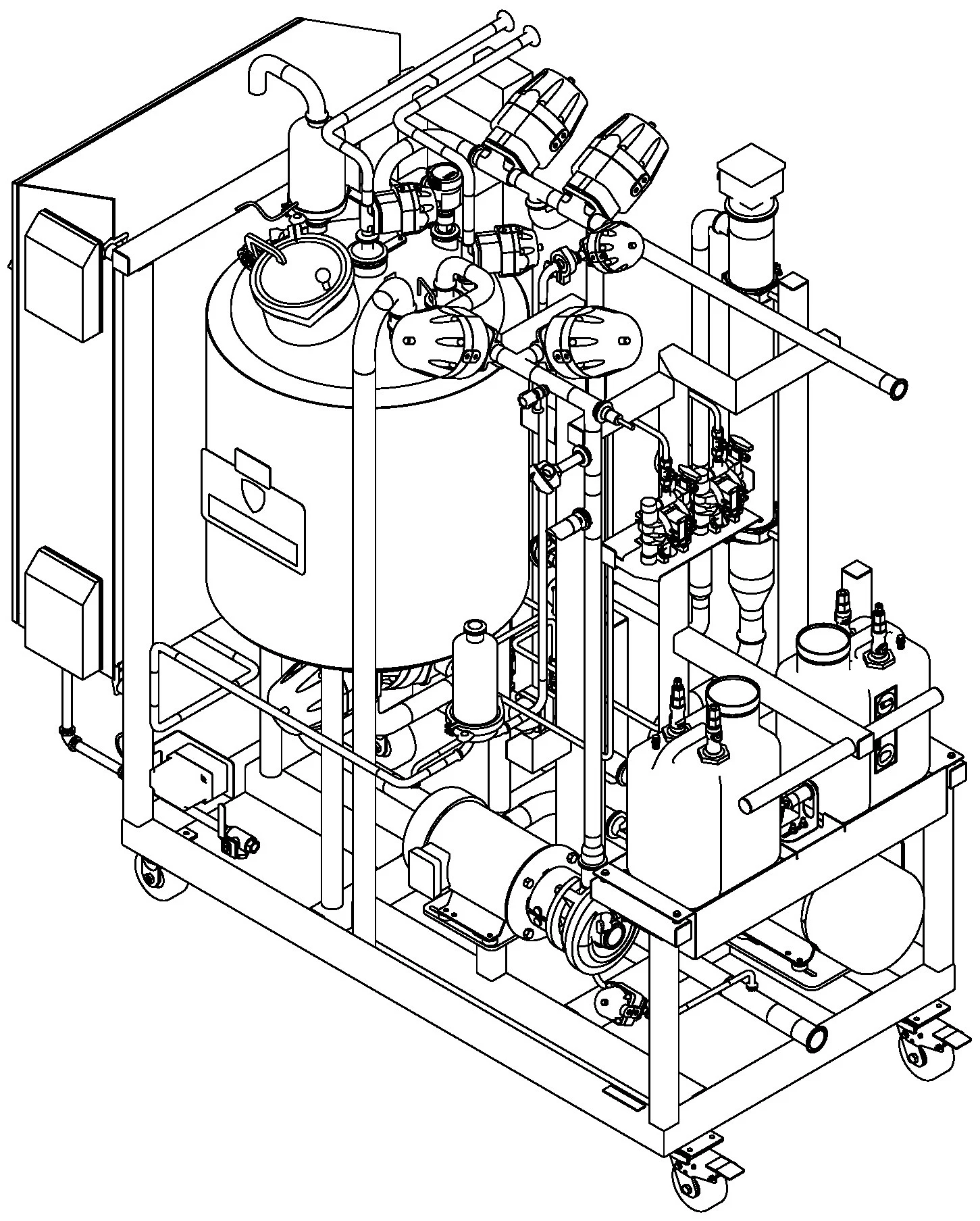

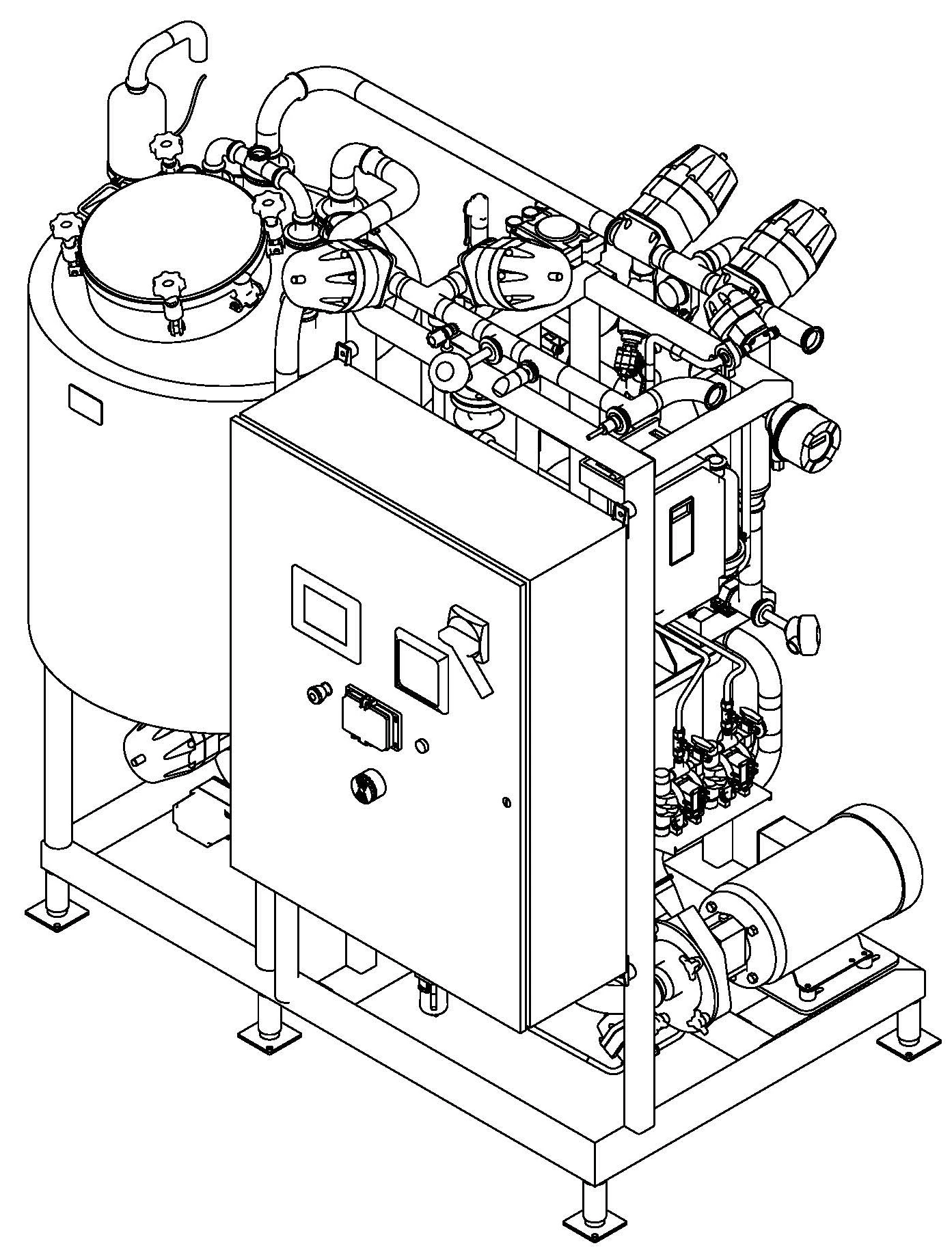

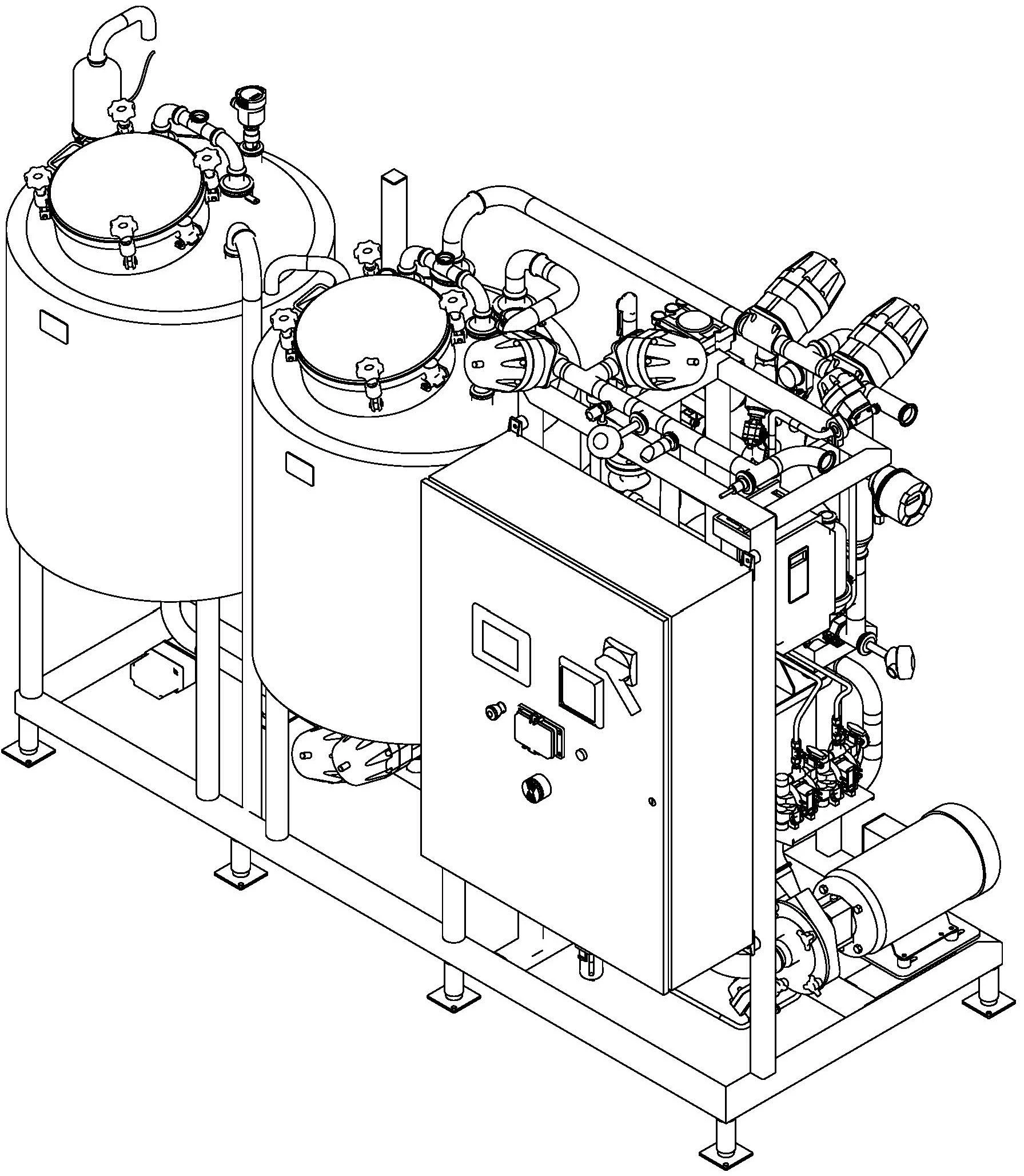

Model Overview

TACTaFlow™

Schematics

TACTaFlow™
