CIP Mini

Achieve automated Clean-In-Place (CIP) with the compact, portable CIP Mini, designed to provide a simple and flexible cleaning solution with a lower initial capital investment. Offered through Sani-Matic’s Configured Design Offering, the CIP Mini can be quickly specified and configured to meet your cleaning needs, with optional SaniTrend® Local or SaniTrend® Cloud reporting for automated cleaning records, performance insights, dashboards, notifications and more.

CIP mini

Resources
View brochures, manuals, technical datasheets, or watch videos for this product.

Details
Explore product details such as standard features, available options, and more.

Articles
Read articles written by industry leaders to share their expertise and recommendations.

Applications



PROCESS TANKS • PROCESS LINES • PROCESS EQUIPMENT • DUCTING • SPIRAL FREEZERS • MIXERS, BLENDERS • OVENS, ROASTERS, DRYERS • TANKER TRUCKS • HOSES • CONVEYOR BELTS • CONVEYORS • IBCs • FILLERS, FILLER PARTS

Markets



DAIRY – lIQUID & cULTURED • dAIRY – cHEESE • PREPARED & pROCESSED FOODS • pRODUCE  • fROZEN fOODS • sNACK fOODS • cANDY & cONFECTIONERY • pOULTRY • pET fOOD • cOMMERCIAL bAKERY • sEAFOOD • PROTEIN • BEVERAGE • INGREDIENTS & cONDIMENTS • NUTRITIONAL • TRANSPORT & LOGISTICS

Product Details

Standard Features

Designed to provide automated CIP performance in a compact, flexible package.

  • One-tank CIP system with 135-gallon nominal / 130-gallon working volume
  • Delivers up to 110 GPM at 55 PSIG
  • Mobile stainless steel frame with non-marking casters and push handle
  • 316L stainless steel wetted surfaces and sanitary piping
  • 32 µin Ra sanitary piping surface finish
  • Supply and return temperature monitoring
  • Allen-Bradley CompactLogix PLC controls
  • 7" Allen-Bradley PanelView Plus HMI touchscreen
  • Up to 40 customizable cleaning recipes
  • UL 508A electrical certification
  • Compact 74" W x 39" D x 75" H standard footprint

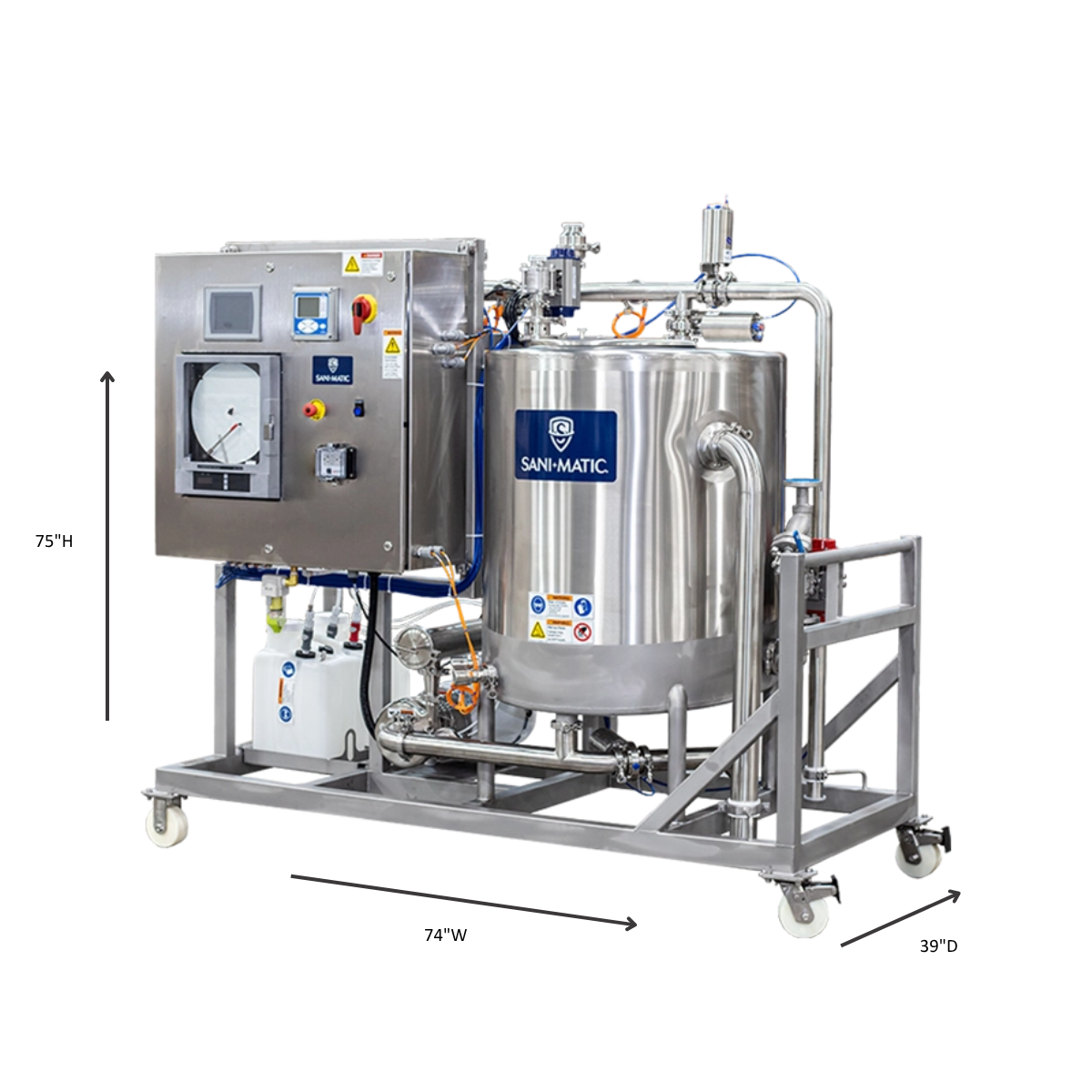

CIP Mini dimensions

Options

  • Tank Insulation – Helps conserve heat and provides additional personnel protection.
  • Stationary Skid – Replace the mobile caster design with adjustable feet for a permanent installation.
  • Heating Options – Choose from an in-tank steam sparger, steam heat exchanger or 30 kW electric heater.
  • Supply Flow & Pressure Control – Add variable pump speed control for applications requiring different cleaning flow or pressure settings.
  • Flow & Pressure Monitoring – Monitor critical CIP supply and return conditions.
  • Chemical Monitoring & Control – Use conductivity monitoring to help manage chemical concentration and verify rinse conditions.
  • Local Chemical Addition – Add one or two chemical pump assemblies, with optional on-skid chemical reservoirs.
  • Supply Strainer – Help protect spray devices and other process equipment from debris.
  • Air Blow – Use compressed air to help evacuate water from process piping during drain steps.
  • 10" HMI Display – Upgrade from the standard 7" operator interface.
  • Reporting Options – Choose from chart recorders, SaniTrend® Local Cleaning Reports or SaniTrend® Cloud Cleaning Reports.

HOW IT WORKS

The CIP Mini connects to the CIP supply and return points of the equipment being cleaned along with the required facility utilities. Once the system is connected, the operator selects the appropriate cleaning recipe from the HMI and starts the cycle.

The CIP Mini then automatically controls the programmed cleaning sequence. A typical cycle may include steps such as a pre-rinse, chemical wash, intermediate rinse and final rinse, with heating, chemical addition and other functions incorporated depending on the system configuration.

Once cleaning is complete, a mobile CIP Mini can be disconnected and moved or stored until it is needed again.
