Strainers

Protecting Your Equipment, Your Product
Integrity, and Your Bottom Line

Sani-Matic Strainers

Strainers

Protecting Your Equipment, Your Product Integrity, and Your Bottom Line

Strainers are a critical part of your process. They help maximize production efficiencies, protect your valuable equipment, and ensure product integrity.

That is why we manufacture a large variety of strainers that are sanitary in design, constructed from durable stainless steel, and easy to disassemble and clean.

We proudly manufacture and distribute all our products from our state-of-the-art manufacturing facility in Sun Prairie, WI, USA. We stock a large variety of strainers and strainer components, allowing us to provide you with the solution you need, when you need it.

Select strainers are designed and certified to the 42-02 (Sanitary Standard for In-Line Strainers) 3-A standard. When considering a strainer that requires 3-A certification, contact a Sani-Matic representative.

Quick Tips

Not sure when to clean a strainer?

Installing a pressure gauge before and after a strainer can help. When the gauge placed after the strainer drops 8 to 10 psi following the initial flow start-up, you will know it is time to clean.

Quick Tips

Want an economical and easy way to prolong the life of your equipment?

Install a Tee-Line Strainer at the suction end of the pump to protect the pump, process equipment, and valves from foreign materials, such as gasket pieces, bolts, and other items.

Quick Tips

Why are Y-Strainers perfect for manufacturing chocolate?

Sani-Matic’s custom-designed hot water jackets can help keep confectionery products, such as chocolate, flowing through the production pipes.

Quick Tips

How do you install a Y-Strainer?

The Y-Strainer should be installed in the process line with the Element’s handle pointing towards the floor.

Quick Tips

Are basket strainer filter bags 3-A Certified?

While filter bags can be used with perforated elements for finer straining applications, they are not 3-A certified.

Note: Basket Strainer filter bags require a clamp ring and locking latch, which are sold separately.

Resources
View brochures, manuals, technical datasheets, or watch videos for this product line.

Solutions
Explore product details such as standard features, available options, and more.

Amazon Store
Order some of the most common off-the-shelf sanitary components, accessories, and parts.

Applications

CIP SUPPLY LINES • CIP RETURN LINES • UTILITY SUPPLY LINES • EQUIPMENT PROTECTION • PROCESS PROTECTION • PROCESS STRAINING

Markets

DAIRY • PREPARED FOODS • PROTEIN • BEVERAGE • INGREDIENTS • NUTRITIONAL • TRANSPORT & LOGISTICS • PERSONAL CARE & COSMETICS • NUTRACEUTICAL

Sanitary Components Catalog

Click below to open the catalog in a new tab to review or download directly.

Product Resources

Literature

Angle-Line Strainer IOM

Magnetic Trap Strainer IOM

Straight-Line Strainer IOM

Y-Strainer IOM

Tee-Line Strainer IOM

Basket Strainer IOM

Videos

ALB Strainer
Product Training

Watch how the features and benefits of the Angle-Line Basket (ALB) Strainer provide for easy installation into your existing side-inlet Sani-Matic Angle-Line Strainer.  The ALB also provides higher holding capacity and easier cleanup for your straining applications.

Angle-Line Strainer
Magnetic Trap Retrofit

Learn how to retrofit your existing Angle-Line Strainer with a Magnetic Trap body. This retrofit requires an Angle-Line strainer with a 4″ body, end inlet (standard flow), and either a 1.5”, 2.0”, or 3.0” TC connection.

Magnetic Trap Strainer
Product Overview

The Sani-Matic Angle-Line Magnetic Trap Strainer doubles as a strainer and magnetic trap to ensure product integrity and equipment protection against metal particles

TACT TALK: Strainer Element & Overlay Types

In this TACT Talk video, learn more about different strainer elements and overlay types and how to specify the right one for your process.

PACK EXPO 2023
Product Overview

Sani-Matic product offerings, including the SaniCab® washer, our Digital Process Recorder (DPR) powered by SaniTrend® Cloud, and Sanitary Components are showcased at the 2023 PACK EXPO Show.

Solutions We Provide

Straight-Line
Strainers

Remove soils and protect equipment.
Must break from process line to clean.

3-A Certified when using perforated elements.

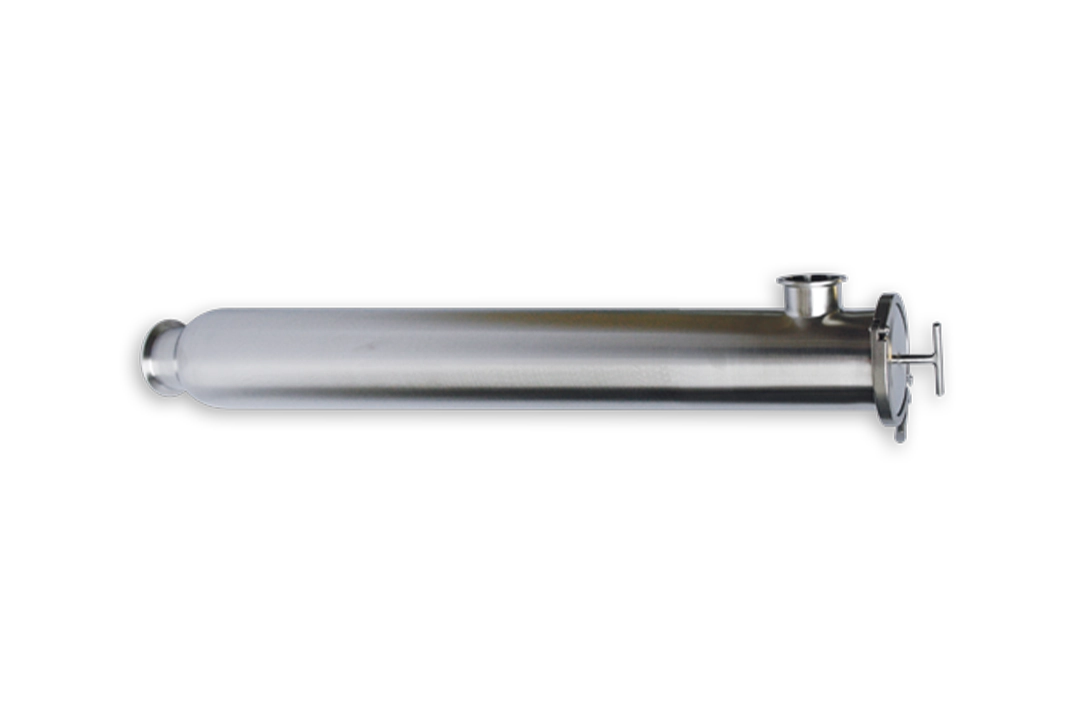

Angle-Line
Strainers

Sani-Matic Angle-Line-Strainers

Choose from side or end flow configurations.
Clean without removing from the process line.

Multiple sizes and options available.

Angle-Line Basket (ALB) Strainer

Capture soils in a fully removable basket.
Uses same body as Angle-Line Strainer.
Patent Pending easy flush end cap design.

Tee-Line
Strainers

Sani-Matic Tee-Line Strainers

Protect your pump from foreign materials.
Easy to remove with low pressure drop.
Optional alignment pin available.

Y-Strainers

Designed to fit into tight spaces.
Utilizes few components for easy maintenance.

Multiple sizes and options available.

Basket
Strainers

Strain particulates out of high-volume systems.
Pressure tested & rated for high pressures.
Filter bags are available for finer straining.

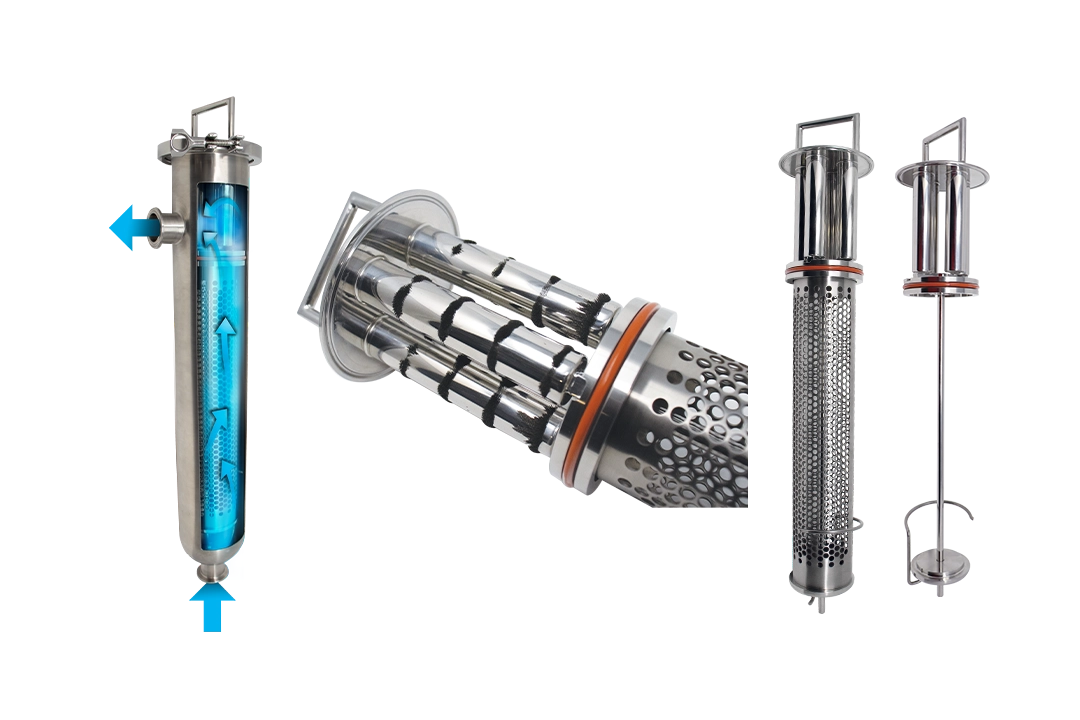

Magnetic Trap
Strainers

Sani-Matic - Magnetic Trap Strainer

Capture metal particulates with one solutions.
Adds minimal pressure drop.
Easily retrofittable to select strainers.

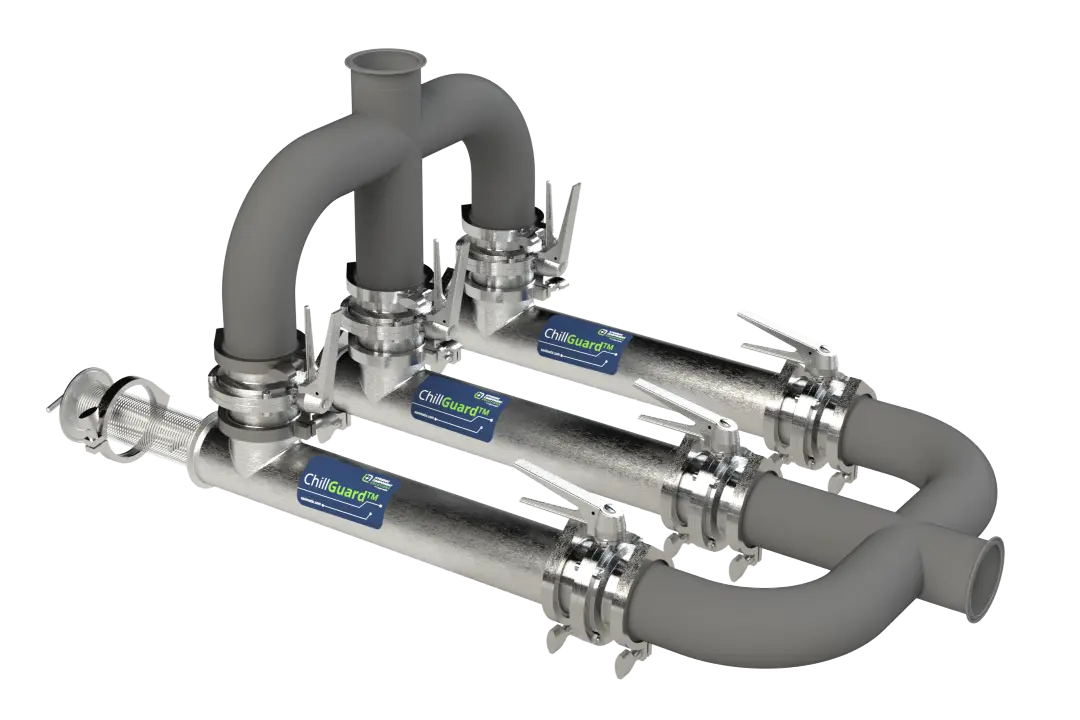

Multi-Strainer Assemblies

Reduce system downtime.
Manual & air operated options available.
Customize to a fully automated system.
